Patient 32-DD: Class I Initial and Treatment Plan

- Submitted by Drs’ Rohit Sachdeva and Dr. Jeff Johnson

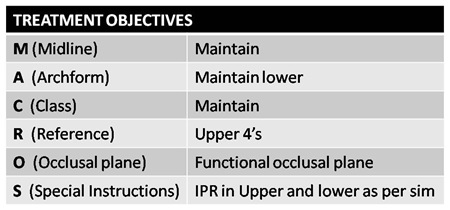

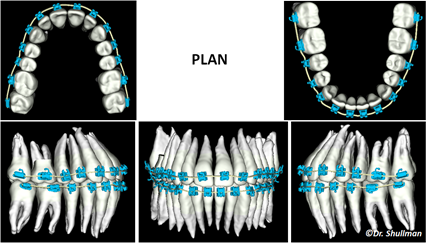

TREATMENT PLAN

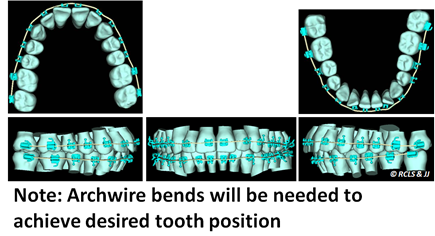

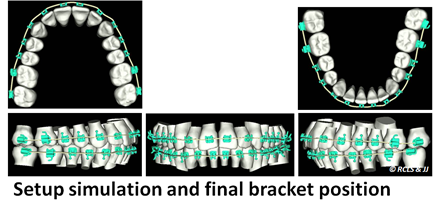

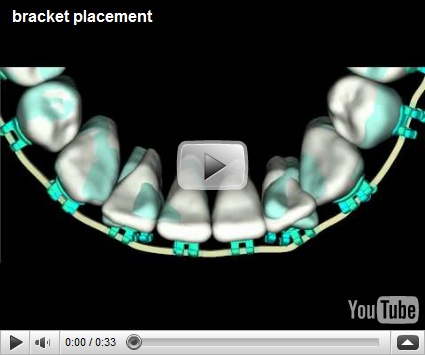

SMART BRACKET PLACEMENT

Copyright © 2010 SureSmile. All rights reserved. Redistribution of blog content is expressly prohibited without the prior written consent of SureSmile.

The Shullman Smile Seminar Series (June 3, 2010) Patient 3-EF- (1/25/10-7/15/10)



Dr. Howard Shullman demonstrates treatment of patient with Class I malocclusion in real time with SureSmile technology.



Visit 1: Initial Records (1/10/10)

a. Took initial photos

b. Took CBCT Scan

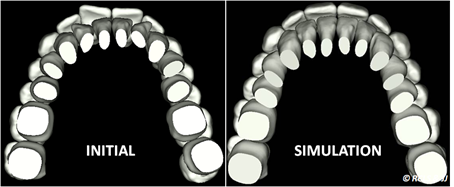

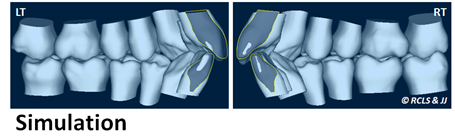

Treatment Simulations

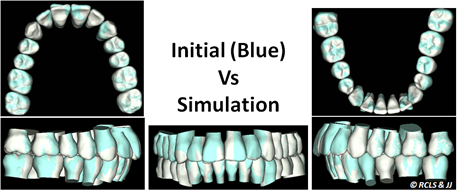

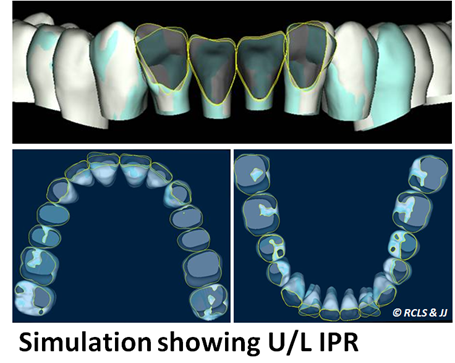

a. Initial model vs plan

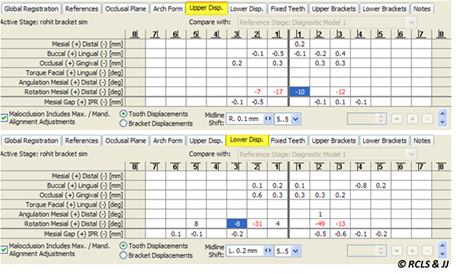

b. Plan bracket placement

Visit 2: Bonded braces upper and lower - All Teeth – 7—7 (1/25/10)

a. GAC Innovation-C brackets U/ 5—5

b. GAC Innovation-R brackets L/ 3—3

c. Placed composite buildup on lower 1^st molars to open bite and allow correction of crossbite of UR3.

Visit 3: Emergency Visit (2/13/10)

– hooks on U/L 7’s removed due to tissue irritation

Visit 4: Progress Photos (2/23/10)

Visit 5: Progress Photos (3/15/10)

a. Placed 018 NiTi Upper and Lower back to 7’s

b. Placed stops mesial to upper and lower 6’s.

c. Placed button on the lingual of the UR3, patient will wear 3/16 4oz crossbite elastic

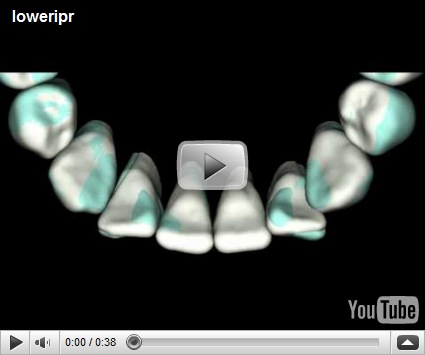

d. IPR lower 3—3 and distal to UR3.



Visit 6: Progress Photos (4/1/10)

a. Power Chain U2-2

b. Cont x-bite elastic on the right side only, photos





Visit 7: Progress Photos (4/19/10)

a. Inserted new UAW (20 x 20 Bioforce)

b. Power Chain U2-2

C. Cont x-bite elastics on the right side only, progress photos

Visit 8: Progress Photos (5/10/10)

a. Insert U 17x25 N, PC U2-2, bonded buttons lingual UR3-4

b. Changed elastics to x-bite/box: lingual UR3-4, buccal LR3-4

C. Added stops mesial of U/L 6's





Fig. Wire1



Fig. Final wire (17x25)



Fig. Upper Torque



Fig. Final Archwire (19x25)



Fig. Torque wire (without expansion)

Fig. RCOS (Expansion)- 19x25

View Full Album

Visit 9: SureSmile wire Insertion (6/3/10)

a. Inserted U/L SureSmile wires U/ 17x25 Copper NiTi with 6.0 expansion and 3 mm curve of spee, L/ 17x25 Copper NiTi with 6.0 expansion and 4 mm curve of spee.

b. IPR mesial/distal LR2-LL3 , PC L6-6,

c. Removed lingual buttons, discont. x-bite elastics, changed to Class II box (Rt side: U3-4 - L45, Lt side: U3-4 - L56)





Visit 10: Progress (7/12/10)

a. Insert U/L aw's - 19 x 25 CuNiti-Niti (3mm RCOS & 6mm expansion)

b. PC U6-6

c. Changed elastics to short Class II on both sides (U3-L4, U4-L5), 3/16 H elastics

d. Removed bite turbos from L6's

e. Progress Photos



Visit 11: Progress (7/27/10)

a. Insert U/L Final 19x25 Copper-Niti aw's  (without RCOS or expansion)

b. IPR mesial/distal UL2, distal of LR3, LR2, LL3, & LL2

c. PC U/L 6-6

d. Bonded bite turbos mesial/buccal of L6's (open bite approx 1mm)

e. Changed elastics to Class II on both sides (U3-L6)

f. Enameloplasty LR3

g. Progress Photos
